Mar-Bel MLS-12 Laminate Slitter
High-Volume Laminate Slitting with Precision and Flexibility
The MLS-12 is a high-efficiency, multiple cut laminate slitter designed to maximize throughput and cutting precision in demanding panel processing environments. Manufactured by SNX Technologies and built on the original Mar-Bel design, this gang-style slitter features a 12″ open-ended throat and the ability to make up to 10 clean, accurate cuts in a single pass. The MLS-12 delivers consistent results, minimal blade wear, and long-term value.
Choose the MLS-12 for Your Shop
Built for speed, consistency, and adaptability, the MLS-12 helps you streamline production without sacrificing cut quality.
Make up to 10 cuts in a single pass
Customize cut widths with spacer-based setup
Self-feeding operation reduces labor strain

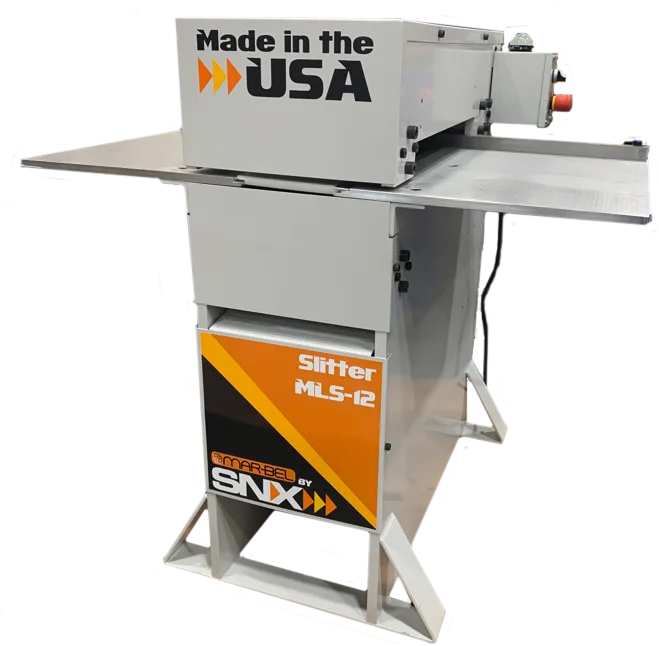

Meet the Mar-Bel by SNX MLS-12
The MLS-12 Multiple Cut Laminate Slitter is a powerful and flexible solution for woodworking and laminate shops that need to process high volumes of material with speed and accuracy. Engineered using the proven Mar-Bel slitter design and manufactured in the USA by SNX Technologies, the MLS-12 features an open 12″ throat and a gang-style cutting system that allows operators to make up to 10 clean, consistent cuts in a single pass. Whether you’re cutting laminate strips for cabinetry, casegoods, countertops, or other surface applications, the MLS-12 dramatically increases throughput while maintaining cut quality that exceeds industry standards.
At the heart of the MLS-12 is Mar-Bel’s renowned three-blade die system, which punches out a precise 1/16″ kerf without producing dust or beveling. This die-based design ensures clean edges and significantly reduces blade wear compared to typical aluminum shear systems. With blade longevity extended and sharpening intervals minimized, the MLS-12 offers a low total cost of ownership while delivering consistently excellent results—even over long production runs.
What makes the MLS-12 truly unique is its customizable shaft and spacer system, which lets operators tailor their cutting configuration to fit their production needs. Different spacer setups can be installed across the top and bottom arbors to achieve the exact widths required. This modular approach allows the machine to be easily
At the heart of the MLS-12 is Mar-Bel’s renowned three-blade die system, which punches out a precise 1/16″ kerf without producing dust or beveling. This die-based design ensures clean edges and significantly reduces blade wear compared to typical aluminum shear systems. With blade longevity extended and sharpening intervals minimized, the MLS-12 offers a low total cost of ownership while delivering consistently excellent results—even over long production runs.
What makes the MLS-12 truly unique is its customizable shaft and spacer system, which lets operators tailor their cutting configuration to fit their production needs. Different spacer setups can be installed across the top and bottom arbors to achieve the exact widths required. This modular approach allows the machine to be easily
adjusted for varying jobs, and operators can even pre-assemble multiple shaft configurations for faster changeovers between runs.
The open-ended 12″ throat provides additional flexibility, allowing material to be cut from larger sheet stock or inserted as pre-sized pieces for secondary drop cuts. This feature makes the MLS-12 ideal for custom shops that need to adapt quickly, as well as high-capacity facilities requiring tight production timelines. The machine’s self-feeding operation means that once material is aligned to the fence, it advances through the blades with minimal operator intervention—improving efficiency and reducing fatigue.
Like all SNX-manufactured equipment, the MLS-12 is built in Sauk Rapids, Minnesota, and backed by a team committed to ongoing service and support. It is compatible with factory-sharpened Style A or Style B blade configurations, and blade sets can typically be sharpened 4–7 times depending on use and condition. With fast turnaround on replacement blades and sharpening services, SNX makes it easy to keep your MLS-12 operating at peak performance.
If your shop is ready to upgrade to a precision slitter that works as hard as you do, the Mar-Bel by SNX MLS-12 is your next essential machine. Designed for flexibility, built for volume, and made to last.
The open-ended 12″ throat provides additional flexibility, allowing material to be cut from larger sheet stock or inserted as pre-sized pieces for secondary drop cuts. This feature makes the MLS-12 ideal for custom shops that need to adapt quickly, as well as high-capacity facilities requiring tight production timelines. The machine’s self-feeding operation means that once material is aligned to the fence, it advances through the blades with minimal operator intervention—improving efficiency and reducing fatigue.
Like all SNX-manufactured equipment, the MLS-12 is built in Sauk Rapids, Minnesota, and backed by a team committed to ongoing service and support. It is compatible with factory-sharpened Style A or Style B blade configurations, and blade sets can typically be sharpened 4–7 times depending on use and condition. With fast turnaround on replacement blades and sharpening services, SNX makes it easy to keep your MLS-12 operating at peak performance.
If your shop is ready to upgrade to a precision slitter that works as hard as you do, the Mar-Bel by SNX MLS-12 is your next essential machine. Designed for flexibility, built for volume, and made to last.
MLS-12 Technical & Operational Features
The MLS-12 is a high-production gang laminate slitter that delivers clean, splinter-free cuts with a three-blade die system and 1/16" kerf—without dust or heavy cleanup. Its open 12" throat and spacer-based arbor enable fast customization and drop cuts, while repeatable 1/32" tolerances ensure precision. A self-feeding design with a 1/2 HP gear motor increases output, reduces fatigue, and delivers reliable, USA-made performance.
Up to 10 simultaneous cuts per pass
12" open-ended throat for large sheet and drop cutting
Spacer-based configuration for custom gang setups
Top and bottom shaft adjustments for precision spacing
Self-feeding operation for high-efficiency throughput
1/16" kerf created by three-blade die system
Dust-free cutting with floating extractor blade
Cut tolerance within 1/32" (when material is properly aligned)
Uses Style A or Style B blade configurations
Blades can be sharpened 4–7 times
Blade OD inspection guides sharpening intervals
1/2 HP TEFC gear motor with in-line reducer
Optional electrics: Single Phase 240V or Three Phase 230V / 460V
Made in the USA by SNX Technologies in Sauk Rapids, MN
Blade System & Sharpening
At the heart of the MLS-12 is the legendary three-blade die system, a proven gang-cutting design that delivers multiple clean, 1/16" kerf cuts with minimal blade wear—even across high-volume production runs. Unlike traditional shearing systems that dull quickly and produce beveled or inconsistent cuts, this die-based configuration ensures crisp, square edges with exceptional dimensional accuracy across all cut widths.
The self-feeding operation combined with the die’s consistent pressure and alignment helps extend blade life significantly and maintain cut quality across a variety of laminate thicknesses—without the need for frequent adjustments or material-specific tweaks.
Over the decades, two primary blade configurations have been used in Mar-Bel-style slitters: Style A and Style B.
The self-feeding operation combined with the die’s consistent pressure and alignment helps extend blade life significantly and maintain cut quality across a variety of laminate thicknesses—without the need for frequent adjustments or material-specific tweaks.
Over the decades, two primary blade configurations have been used in Mar-Bel-style slitters: Style A and Style B.
Style A blades were used in machines manufactured prior to 1973 and feature three 1/16" thick blades, with stiffening collars on the two bottom blades.
Style B blades, used from mid-1973 onward, include two 1/8" thick bottom blades and a 1/16" top blade, eliminating the need for stiffeners.
While many older machines have been retrofitted to accept Style B blades, the two configurations are not interchangeable without modification. The MLS-12 is compatible with Style B blades by default.
While many older machines have been retrofitted to accept Style B blades, the two configurations are not interchangeable without modification. The MLS-12 is compatible with Style B blades by default.
SNX supports every machine we manufacture with professional factory sharpening services to maximize blade life and preserve edge quality. Each blade set is carefully inspected for proper tolerance, and only the minimum necessary grinding is performed—ensuring you get the most life from each set. Proper sharpening improves cut quality, reduces tool wear, and keeps your machine running at peak performance.
Before sending blades for sharpening, users should measure the outside diameter (OD) of the smallest blade:
Before sending blades for sharpening, users should measure the outside diameter (OD) of the smallest blade:
If the OD is 5.395″ or greater, and there are no major nicks, the blade set is eligible for sharpening.
If the OD is below 5.395″, the blades should be replaced to maintain optimal cutting results.
Key Differences
Feature
MLS-12
SLTR-700
SLTR-3600
Cut Type
Multiple cuts (gang-style)
Single cut
Single cut
Throat Width
12″ open-ended
7" single-feed
36" open-ended
Max Cuts
10 in one pass
1 per pass
1 per pass
Operation
Spacer-adjustable shafts for custom gang setups
Fence-adjusted single cut
Fence-adjusted single cut
Motor
1/2 HP gear motor
1/3 HP gear motor
1/3 HP gear motor
Application
Custom-height banding prep
Edgebanding prep for standard-width laminate
Wide-format laminate and edgebanding prep
Built for Excellence
Made in the USA
At SNX Technologies, we take immense pride in manufacturing all of our contour edgebanding machines right here in the USA. By producing our equipment in Sauk Rapids, Minnesota we ensure the highest levels of craftsmanship and quality. This local manufacturing process allows us to maintain full control over production, continuously innovate, and deliver machines that meet the demanding needs of woodworking professionals.
Choosing SNX means supporting American ingenuity while equipping your shop with industry-leading solutions that are built to last.
Made in AmericaChoosing SNX means supporting American ingenuity while equipping your shop with industry-leading solutions that are built to last.
FAQs
What does the MLS-12 do?
The MLS-12 is a multiple cut laminate slitter designed to produce up to 10 clean, consistent strips in a single pass. It uses a three-blade die system and a customizable shaft configuration for flexible, high-volume output.
How many cuts can I make at once with the MLS-12?
The MLS-12 can make up to 10 simultaneous cuts across its 12″ open-ended throat, depending on the spacer and blade configuration installed.
What types of materials can it cut?
The MLS-12 is designed for cutting laminate, vertical grade, countertop grade, and other flat panel materials without needing to adjust for thickness variations.
How does the blade system work?
The machine uses a three-blade die system to punch out a precise 1/16″ kerf. This die approach ensures straighter, cleaner cuts with less wear compared to standard shearing systems.
Can I adjust the cut widths?
Yes. Cut widths are fully customizable using spacer setups on the top and bottom shafts. Operators can preconfigure multiple shaft setups for quick job changes.
Is the MLS-12 compatible with Style A or Style B blades?
The MLS-12 is configured for Style B blades by default but may be retrofitted for Style A if needed. The two styles are not interchangeable without modification.
How often do the blades need to be sharpened?
With proper use, blades can typically be sharpened 4–7 times. SNX offers factory sharpening services to extend blade life and preserve cut quality.
Do I need a dust collection system with this machine?
No. The MLS-12 is dust-free by design, using a floating extractor blade to remove the kerf without clogging or additional filtration.
Is this machine suitable for small shops?
Yes. While it excels in high-volume operations, the MLS-12 is also ideal for small or custom shops that need fast, repeatable cuts and flexibility in cutting widths.
Where is the MLS-12 manufactured?
The MLS-12 is proudly made in the USA by SNX Technologies in Sauk Rapids, Minnesota, and backed by our full-service support team.
